Male run tees are essential components in plumbing and piping systems. They play a crucial role in directing fluid flow and connecting pipes of different sizes. Installing male run tees might seem tricky, but with the right steps, you can do it yourself! These tees are super important in plumbing because they help pipes connect and let water or other fluids flow in different directions. Don’t worry, we’ll guide you through the process step by step, so you’ll be a pro in no time.

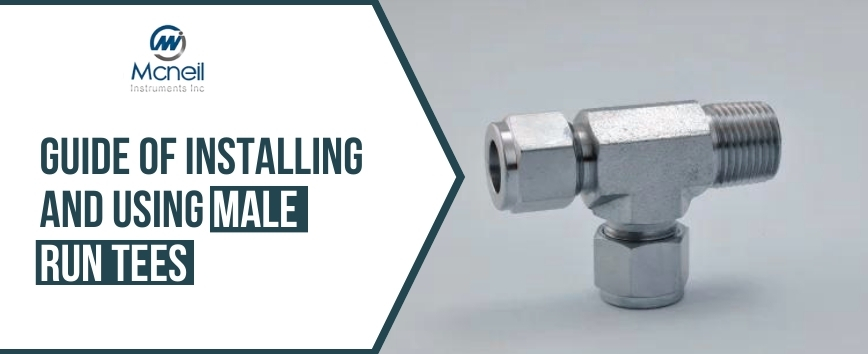

What is a Male Run Tee?

A male run tee is a type of pipe fitting that has three openings: one for connecting to a female thread, one for connecting to a pipe, and one for connecting to another fitting or pipe. It is called a “male” run tee because one end has external threads that fit into a female fitting.

How Does a Male Run Tee Work?

The male run tee acts as a connector between pipes or fittings in a plumbing system. The end with the male threads screws into a female fitting, creating a secure connection. The branch of the tee allows fluid to flow in a different direction, while the main run continues straight through the fitting.

Types of Male Run Tees

There are different types of male run tees designed for specific applications and materials:

Material: Male run tees can be made from various materials such as brass, stainless steel, PVC, and copper. The choice of material depends on factors like the type of fluid being transported, temperature, and pressure.

Size: Male run tees come in various sizes to accommodate different pipe diameters. Common sizes range from 1/8 inch to several inches in diameter.

Thread Type: The threads on male run tees can be tapered (NPT) or parallel (NPS). NPT threads are used for sealing and are commonly found in plumbing applications.

Installation Process of Male Run Tee

Male run tees are indispensable components in plumbing and piping systems, offering versatility in directing fluid flow and connecting pipes of varying sizes. Here’s a straightforward guide on how to install and effectively use male run tees:

1. Gather Your Tools and Materials: Before starting the installation process, ensure you have the necessary tools and materials:

  • Male run tee fitting
  • Pipe cutter or hacksaw
  • Thread sealant (Teflon tape or pipe dope)
  • Adjustable wrench

2. Prepare the Pipes:

  • Measure and mark the pipes where you intend to install the male run tee.
  • Use a pipe cutter or hacksaw to cut the pipes to the desired length. Ensure the cuts are clean and free from burrs.

3. Apply Thread Sealant:

  • To prevent leaks, apply thread sealant to the male threads of the male run tee fitting. You can use Teflon tape or pipe dope for this purpose. Wrap the tape around the threads in a clockwise direction, ensuring a tight seal.

4. Connect the Male Run Tee:

  • Screw the male run tee into the female fitting or connection point. Use an adjustable wrench to tighten the fitting securely. Avoid over-tightening, as this can damage the threads.

5. Connect the Pipes:

  • Once the male run tee is in place, connect the pipes to the remaining openings of the tee fitting. Ensure the pipes are aligned correctly and securely attached. If necessary, use appropriate fittings or couplings to make the connections.

6. Test for Leaks:

  • Turn on the water or fluid flow to test the installation. Check for any leaks around the connections of the male run tee and pipes. If leaks are detected, tighten the fittings further or reapply thread sealant as needed.

Using Male Run Tees:

  • Male run tees facilitate fluid flow and direction changes in plumbing and piping systems. They can be used in various applications, including water distribution systems, HVAC systems, hydraulic systems, pneumatic systems, and gas pipelines.
  • Ensure the male run tee is installed in the correct orientation to achieve the desired flow direction.
  • Regularly inspect the male run tee and surrounding connections for any signs of leaks or damage. Address any issues promptly to prevent further complications.

By following these steps, you can successfully install and utilize male run tees in your plumbing and piping systems, ensuring efficient fluid flow and system functionality.

Technical Specification of Male Run Tee

TUBE OD SIZE (TOD)From 1/8” OD to 1.5” OD (Fractional) From 3mm OD to 38mm OD (Metric)
MALE PIPE THREAD SIZE (MPT)1/8” to 1.5” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request)
TYPEDouble ferrule design with nut (Single ferrule optional)
MOCSS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc

Common Applications of Male Run Tee

Male run tees are used in various plumbing and piping systems, including:

  1. Water distribution systems
  2. HVAC systems
  3. Hydraulic systems
  4. Pneumatic systems
  5. Gas pipelines

Using male run tees is pretty simple once they’re installed. Just make sure they’re connected the right way to guide the water or fluids where you need them. Keep an eye out for any leaks or problems, and fix them quickly if you spot any. With your male run tees properly installed and maintained, your plumbing system will work smoothly for a long time!
